IBI TransMedia Kit


IBI TransMedia Kit

Model Number IB47470

$28.00
  • Item Description
  • Specifications
  • Protocol
  • Technical Information
For Research Use Only

The IBI TransMedia Kit is designed for the stabilization, transportation, and inactivation of infectious samples suspected of containing viral and bacterial DNA/RNA.

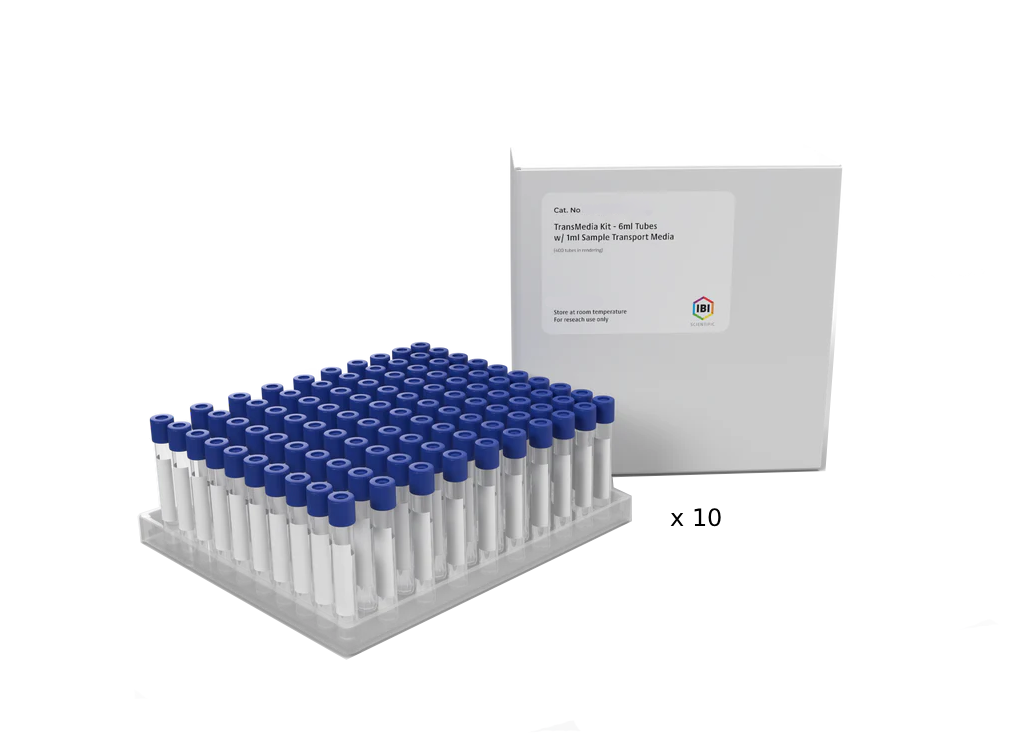

The IBI TransMedia Kit consists of a 6 mL storage tube with a cap (80mm L x 12.5 Dia) containing 1 mL of the stabilization solution.

These components are intended to:

  • Inactivate virus and bacteria
  • Lyse cells
  • Lyse lipid membranes
  • Denature proteins
  • Inactivate enzymes
  • Stabilize viral and bacterial DNA/RNA

Functions:

  • Virus/bacteria killing
  • Nucleases inactivation
  • RNA stabilization
  • Sample long term storage
  • Room temperature transport
  • Human cfDNA/cfRNA stabilization

Sample:

  • Nasopharyngeal swabs
  • Oropharyngeal swabs
  • Sputum specimens


Specifications:

    Safety Measures:

    IBI TransMedia contains Guanidine salts can form highly reactive compounds and release cyanide gas when combined with bleach (sodium hypochlorite). If the split medium containing potentially infectious agents, clean the affected area fi rst with laboratory detergent and water, and then with 1% (v/v) sodium hypochlorite. During the procedure, always wear a lab coat, disposable gloves, and protective goggle.

    Kit Contents:

    Product Name IB47470 IB47471 IB47472
    IBI TransMedia 1ml x 10 tubes 1ml x 100 tubes  1ml x 400 tubes

    Technical Information:

    Test 1:

    Staphylococcus aureus (Gram-positive) were grown to 0.8 of OD600. A 10,000x dilution was made, the same amount of cells were placed in TransMedia and treated at room temperature for 1 hour and without treatment were plated on BAP plates and incubated for 48 hrs. The results showed that the Staphylococcus aureus cells can be completely killed by IBI TransMedia Kit.

    Test 2:

    Escherichia coli (Gram-negative) were grown to 0.8 of OD600. A 10,000x dilution was made, the same amount of cells were placed in TransMedia and treated at room temperature for 1 hour, and without treatment, were plated on LB plates and incubated for 18 hrs. The results showed that the Escherichia coli cells can be completely killed by IBI TransMedia Kit.

    Virus Killing:

    The MS2 phage (RNA, non-enveloped, icosohedral virus) with TransMedia treatment and without treatment were mixed with the cells and pour to a plate with a lawn of actively growing compatible bacteria. After overnight growth, the plaques can be visualized, quantitated, and then titer determined. The results showed that the MS2 phage can be completely killed by IBI TransMedia.

    RNA Stability:

    IBI TransMedia provides long-term storage of E. coli total RNA. It efficiently protects all RNA species (23S RNA, 16S, RNA, mRNA, and 5S RNA/tRNA from nucleases attacking. Lane 1: Original RNA. Lane 2: RNA stored in the IBI TransMedia for 1 day at room temperature. Lane 3: RNA stored in the IBI TransMedia for 2 days at room temperature. Lane 4: RNA stored in the IBI TransMedia for 3 days at room temperature. Lane 5: RNA stored in the IBI TransMedia for 7 days at room temperature.

    RNA Integrity:

    RNA purified by IBI TransMedia showed high quality and excellent RNA integrity. E. coli cells were lysed and stored in IBI TransMedia for 7 days. RNA were purified. RNA species were separated on a 6% semi-denaturing PAGE. RNA species were cut out from the gel, purified, and were confirmed by Northern blot hybridization using P32-labeled oligo probes specific to various RNA species. Various RNA were also demonstrated by RT-PCR assays. These experiments demonstrate that various RNA species (23S, 16S, 6S, 5S, 4.5S, and 4S (tRNA) can be protected from RNase attack in IBI TransMedia. Gel results also showed the RNA were kept in an excellent integrity.

    Compatible to spin column and magnetic bead nucleic acid purification kits.

    Different copy numbers of nucleic acid from M13 DNA phage, MS2 RNA phage, long synthetic oligo DNA, HBV DNA virus, HCV RNA virus, and human genomic DNA were spiked into IBI TransMedia. The nucleic acid were then purified from IBI TransMedia using spin column and magnetic beads format kits individually. The nucleic acid recovery were determined by qPCR or qRT-PCR. The results showed that high yield of nucleic acid can be recovered (70-100%) using spin column and magnetic beads kits from IBI TransMedia.
