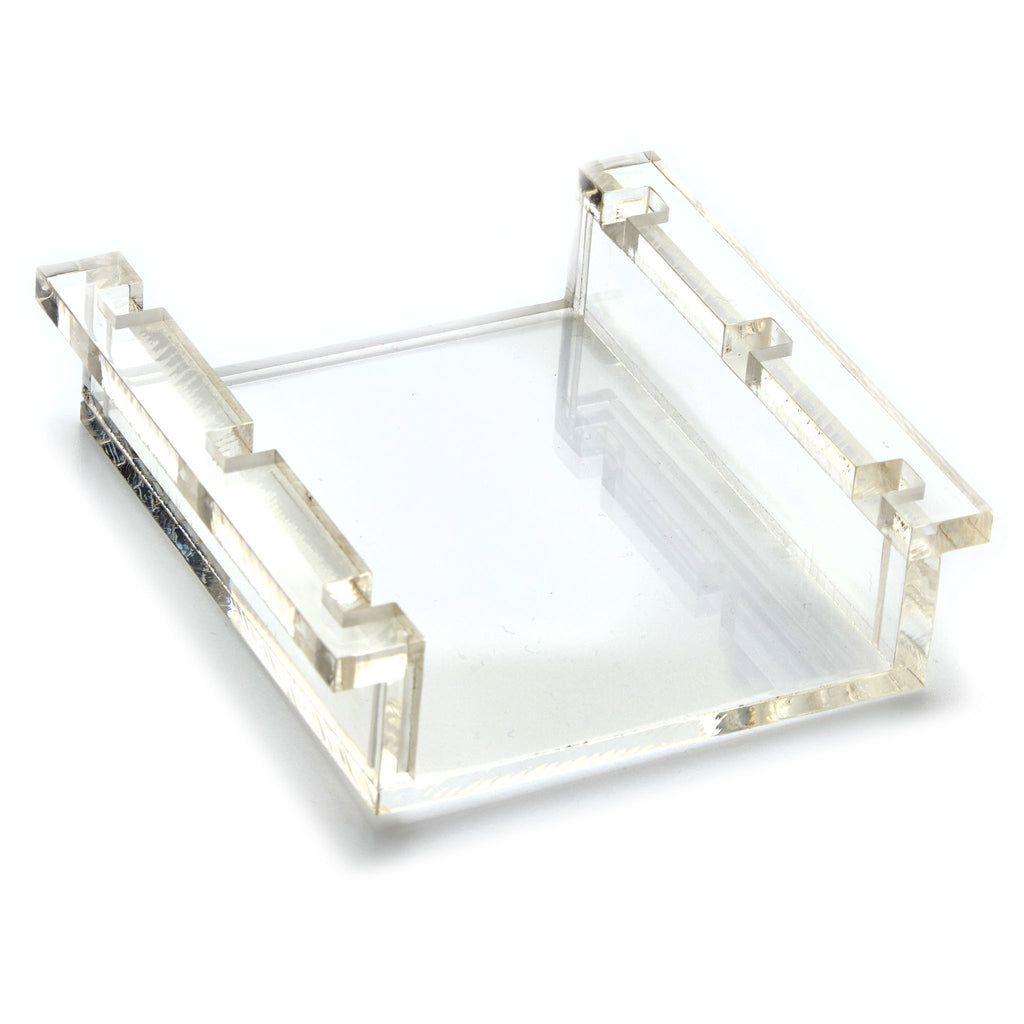

QS-710 UV Transmittant Casting Tray
Move your mouse over image or click to enlarge

QS-710 UV Transmittant Casting Tray

  • $68.42 Model Number IB51020



  • For casting a 7cm (wide) x 10cm (long) agarose gel
  • Mates with the QS-710 Casting Fixture (IB51025) to create the QS-710 Casting System (IB51030)
  • Holds up to two QS-710 combs simultaneously (Various configurations available)
  • Compatible with the QS-710 Quick Screen Horizontal Electrophoresis System (IB51000)

IBI’s IB51020 is a UV Transmittant (UVT) Casting Tray used to mold a 7cm (wide) x 10cm (long) gel for use in the QS-710 Quick Screen Horizontal Electrophoresis System (IB51000.) This QS-710 UVT Casting Tray mates with the QS-710 Casting Fixture (IB51025) to create the QS-710 Casting System (IB51030) for pouring agarose gels outside of the QS-710 gel rig. This allows for continual use of the electrophoresis system with no downtime for gel preparations. The UVT casting tray and casting fixture tightly fit together via a compressible gasket, so as no casting tape is necessary when pouring gels. Once an agarose gel is molded, the casting tray is separated from the casting fixture and placed into the gel system’s buffer tank to run the desired gel.

The QS-710 UV Transmittant Casting Tray (IB51020) is constructed of 3/16-inch thick, clear UVT cast acrylic to allow for the passage of UV light. This casting tray is specially designed to hold up to two QS-710 analytical or preparative combs, simultaneously. QS-710 combs of various configurations are available.

Each QS-710 Quick Screen Horizontal Electrophoresis System (IB51000) comes with one QS-710 UV Transmittant Casting Tray (IB51020.)

Additional accessories and replacement parts are available.

Made in the USA.
