MaGELin Precast Mini Gel System
- Item Description
- Operation Manual
- Technical Information
- Parts and Accessories

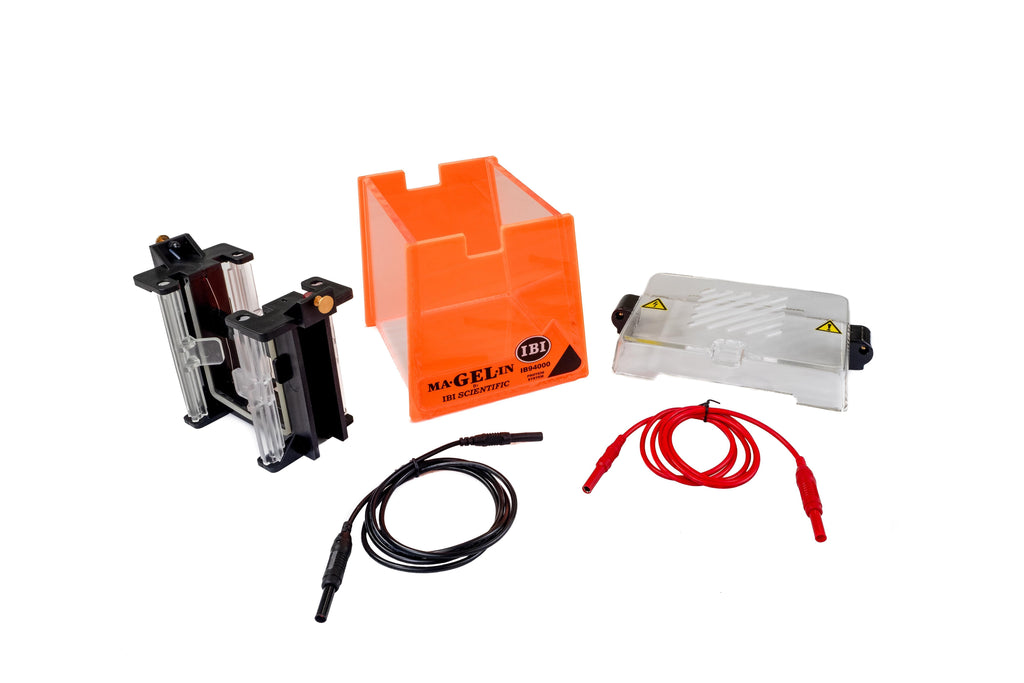

The IBI Ma-GEL-In Mini Protein system for precast gels is a truly versatile mini protein system designed to accommodate Novex or Expedion 10x10 precast gels. System allows for the running of two gels simultaneously or one gel with the use of the included buffer dam inserted into the gel capture device. When not running gels this unit can also perform Western Transfers with the addition of the IB95000 Western Transfer module. Unit come complete with:
- Buffer tank and vented lid
- Power cords
- Buffer dam
- Dual gel capture device
Made in the USA
Unit dimensions:18.0 cm(H) x 17.0 cm(W) x 17 cm(L)
Gel dimensions:10.0 cm(W) x 10 cm(L)
Buffer capacity:350 ml min. – 850 ml max.
Max volt:150 V
General Information about Vertical ElectrophoresisOur vertical electrophoresis unit “spacers” are customized for our units only. They cannot be used on another company’s unit. Our spacers are orange rubber pieces in which the glass fits into and is held in place.
Options for Cooling a Vertical Gel System1. The user can make up buffer ice cubes (use same buffer that they are running their gel in.) These can be placed in the buffer tank while running the gel to cool it. 2.For the MaGELin systems, an ice pack can be purchased in placed in the buffer tank to cool it down. The product# is IB92080.
