MP-1015 Next Generation UVT Casting Tray – 4 Lanes
- Item Description
- For casting a 10cm (wide) x 15cm (long) gel, divided intofour isolated gel lanes to prevent cross-contamination of samples used for Next Generation Sequencing
- Mates with the MP-1015 Casting Fixture (IB53030) to create a seamless casting system
- Specialized 1.5mm thick combs available to accommodate one sample and one marker per lane (IB53101)
- Compatible with the MP-1015 Multi-Purpose Horizontal Electrophoresis System (IB53000)

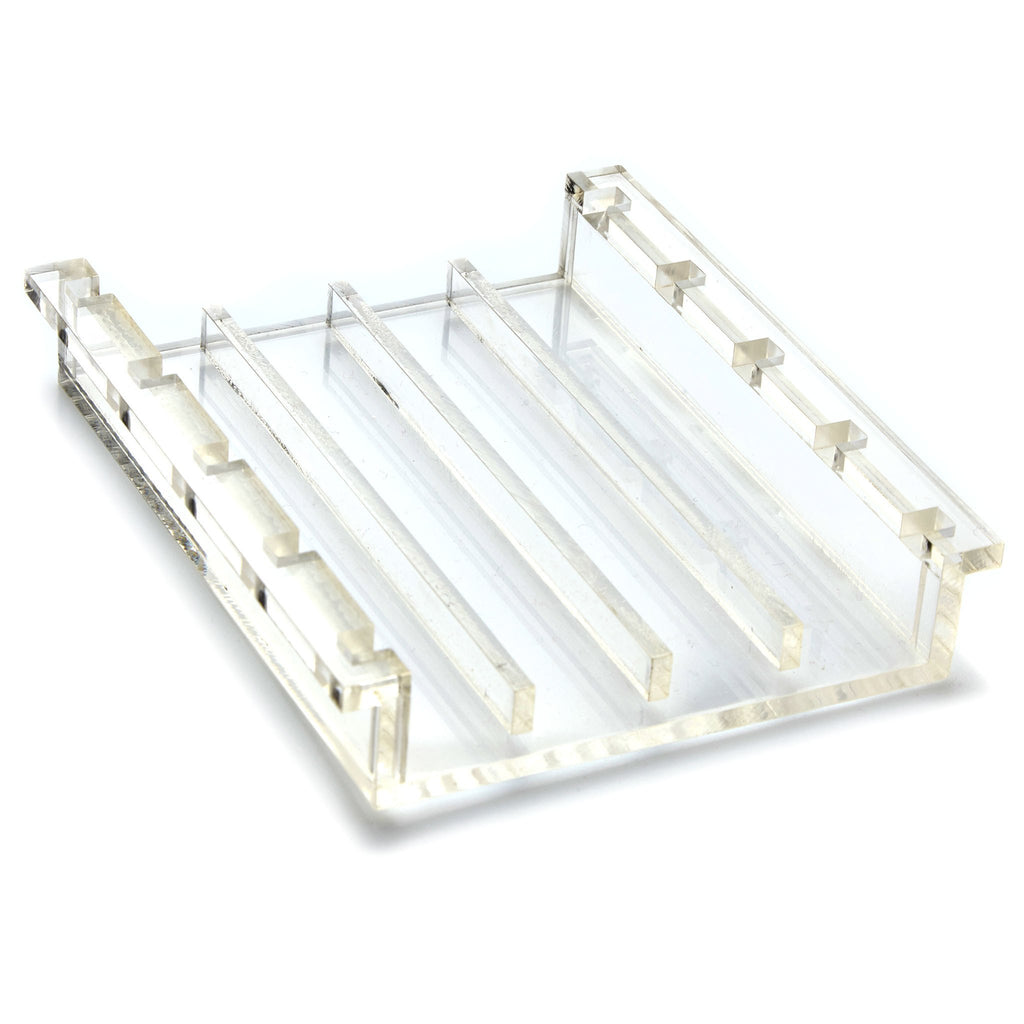

IBI’s IB53022 MP-1015 Next Generation UV Transmittant (UVT) Casting Tray includes four lanes, separated by cast acrylic, to prevent cross-contamination for Next Generation Sequencing libraries.
The MP-1015 Next Generation UVT Casting Trays are compatible with the MP-1015 Casting Fixture (IB53030) that comes with the MP-1015 Electrophoresis System (IB53000.) Special 1.5mm thick combs (IB53101) are available. Each contains one sample and one marker per lane.
The MP-1015 UV Transmittant Casting Tray (IB53022) is constructed of 3/16-inch thick, clear UVT cast acrylic to allow for the passage of UV light. This casting tray is specially designed to support 4 isolated lanes--each divided by a 3/16-inch piece of acrylic—to prevent cross-contamination of samples. The associated MP-1015 N.G.T. Combs (IB53101) are manufactured from Delrin and come in a configuration such as 1.5mm thickness with 4 tooth sets, each accommodating one marker and one sample.
The MP-1015 Next Generation UVT Casting Tray—4 Lanes (IB53022) is sold separately from the MP-1015 Electrophoresis System (IB53000.)
Made in the USA.
