- Item Description
- Used between the 16cm glass plates of the JVD-80
- Must be matched with a 1.5mm thick comb
- Includes two side spacers, one bottom spacer, and two spacer tabs

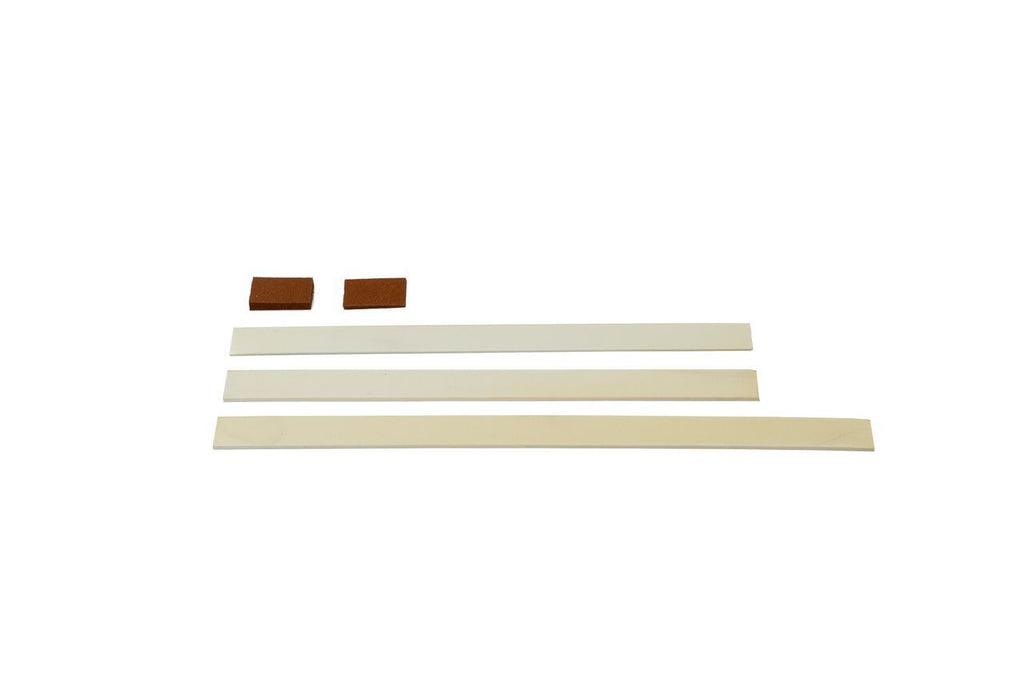

The SP-1516 Spacer Set is designed for pouring 16cm long polyacrylamide gels of 1.5mm thickness. This spacer set contains three white, polystyrene spacers (2 side spacers and 1 bottom spacer) and two rubber spacer tabs, all for use in creating the gel sandwich between the glass plates of the JVD-80 Dual-Slab Vertical Electrophoresis System.
All three polystyrene spacers are of 1.5mm thickness and must be used in conjunction with a 1.5mm thick comb.
The two rubber spacer tabs included are to be attached at the top of the side spacers. These spacer tabs will create a flush surface for clamping the two glass plates together, considering the outside glass plate is longer than the inside (notched) glass plate.
The SP-1516 Spacer Set is included with the purchase of a new JVD-80 Dual-Slab Vertical Electrophoresis System.
Made in the USA.
