Belly Dancer Orbital Shaker - Start Up Kit

Model Number BDRLS0006

  • Item Description
  • Product Video
  • Physical Specifications
  • Operation Manual
  • Technical Information
  • Lab Start Up Kits
  • Parts and Accessories
  • Blot Boxes
  • Adjustable speed (0 – 100 RPM) and platform pitch control (0° – 8⁰)
  • Doubles the usable platform space (2 – 12” x 12” Platforms) and holds up to 20 lbs
  • Operates in cold rooms and CO2incubators (0° – 40⁰C)
  • Comes with: The Belly Dancer® – 115 V unit (BDRAA115S) and the 2ndStory Platform Kit (ACCAA0001)
FREE UPS Ground Shipping!!

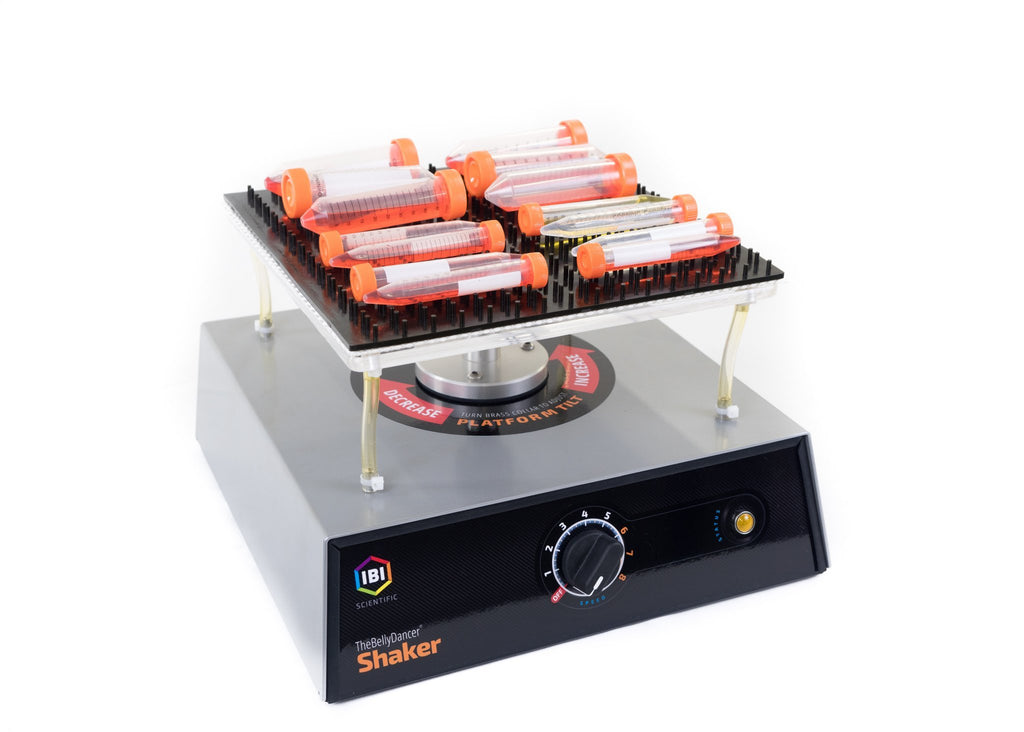

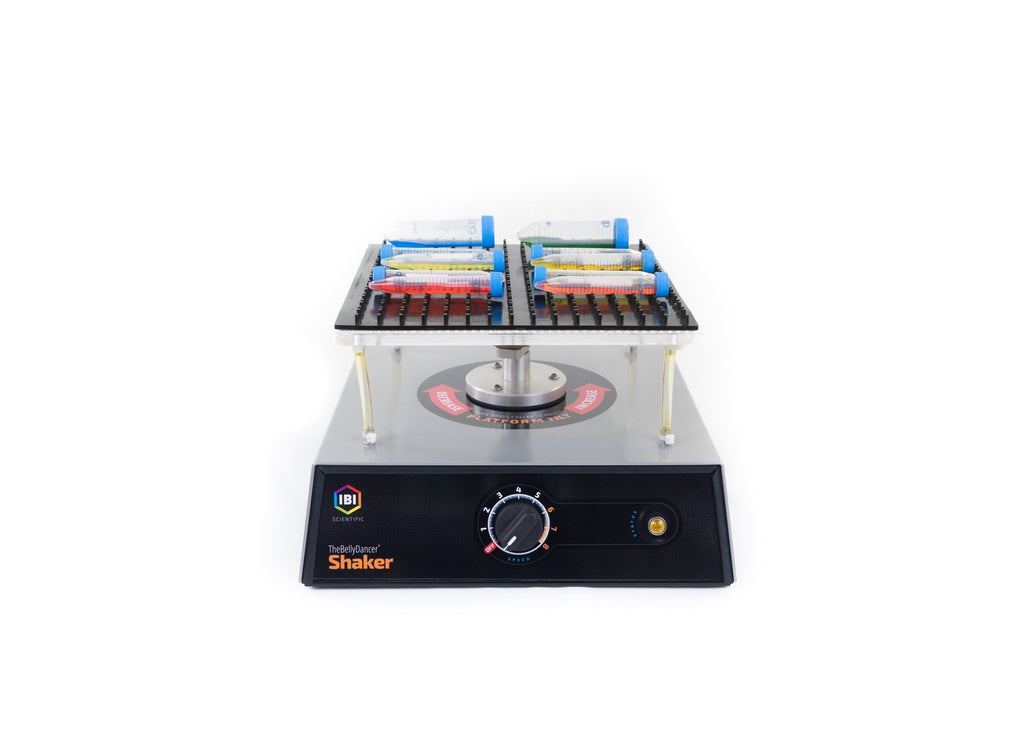

The unique, undulating motion of The Belly Dancer® orbital shaker is designed to provide the optimal movement for tissue culture, staining and destaining gels, Northern, Southern, or Western blotting, and immunoprecipitation. The simple liquid agitation system, consisting of an orbiting platform flexibly anchored at four corners so that the platform motion, when adjusted by the platform pitch control collar, is an extremely effective combination of rocking platform mixer and orbital shaker. Agitation is gentler but more efficient than the action of ordinary shakers. The smooth combination of vertical and horizontal orbital motion allows for more rapid exchange of solvents in applications like staining and destaining gels and protects sensitive cell lines from sheering in cell culture.

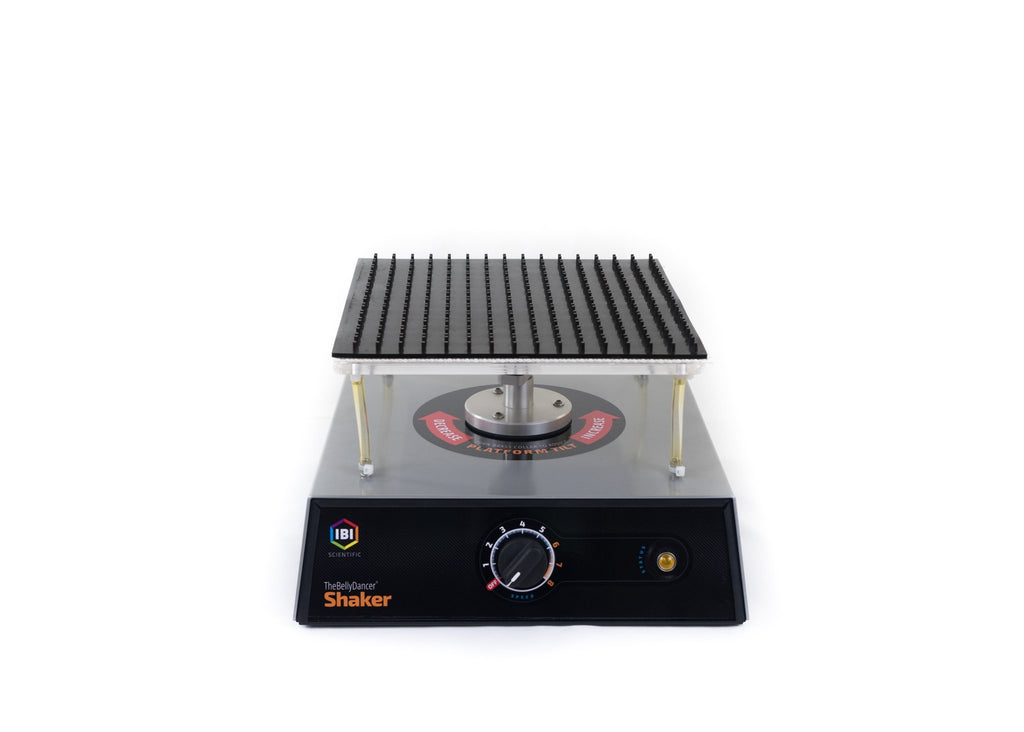

The Belly Dancer® has a simple, durable construction and is made of chemically resistant materials including stainless steel and anodized aluminum parts with a high bake ester finish on the case. The Belly Dancer® comes with an open-sided platform to accommodate oversized containers and a removable, washable non-skid platform mat. The flat power cord can also pass through the door gasket of incubators without compromising the environment. The platform can easily be adjusted with the platform pitch control collar from level motion to an 8° pitch. The Belly Dancer® can hold up to 20 lbs. with extremely quiet operation. The ambient operating temperature range is 0° C to 40° C. The speed varies from 0 to 100 rpm with no cogging at slow speeds.

The 2nd Story Platform doubles the platform capacity and comes with 4.5" aluminum spacer legs and a non-skid removable mat.

The Belly Dancer® Shakerwas previously manufactured by Stovall Scientific. All IBI accessories and replacement parts are compatible with the Stovall Belly Dancer®.

Base Footprint:15” x 15”
Standard Platform:12” x 12”
Overall Height (w/ Single Platform):9”
Overall Height (w/ 2nd Story Platform):14”
Distance between Platforms:4.5”
Product Weight (w/ 2nd Story Platform):20 lbs.
Shipping Weight (w/ 2nd Story Platform):24 lbs.
Maximum Weight on Platforms:20 lbs.
Orbit Size:1”
Operating Temperature Range:0°-40° C
Maximum Operating Humidity (Non-Condensing):97%
Operates in CO2 Incubator:Yes
Operational Speed:0-100 RPM
Platform Pitch Control:0°-8°
Electrical:115 V – 50/60 Hz

Read through entire instructions first, and then go back through step by step.• You are going to remove the 4 screws from each corner of the top platform. These screws hold the grommets in place that the tubing/legs attach to on the underside of the platform. • Remove ONE at a time. • Replace each screw with the threaded end of the 2nd story posts. Tighten. • Once all 4 screws have been replaced with 4 posts. • Place the 2nd story platform on top of the 4 posts. • Use the 4 screws that you removed from the bottom platform to attach the top platform to the posts. Now you are done.

The Belly Dancer® is making a squeaking noise what should I do to quiet this?Putting a drop of non-penetrating oil in the tilt assy will quiet the unit. (DO NOT use WD-40)

Why does the case of The Belly Dancer® have dust on it?The dust being generated is from the washer. The washer is a wear item and keeps the metal parts from rubbing together. Most of the particles are re-absorbed by the rubber washer, however, when there are heavier loads on the unit, some dust will/may appear on the top of the case. This is not a defect.

BDROM0006 - Replacement Leg Instructions

BDROM0002 - Motor Replacement Instructions
